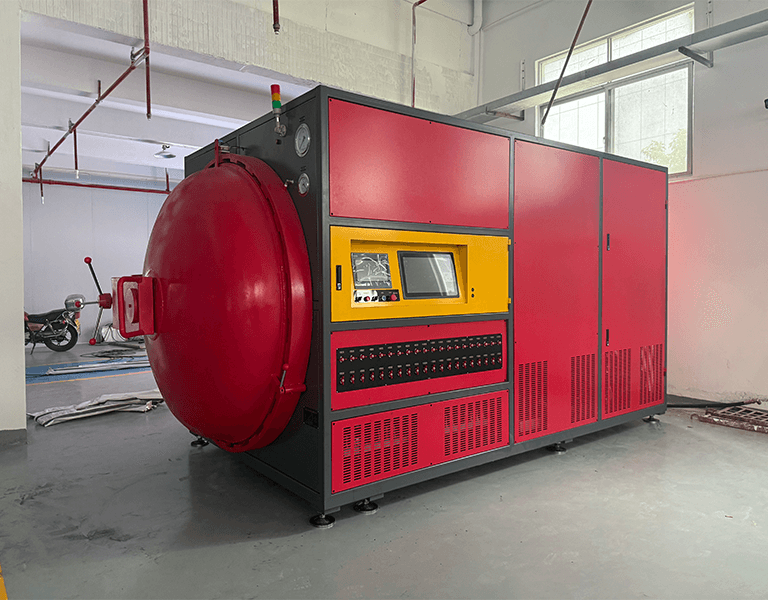

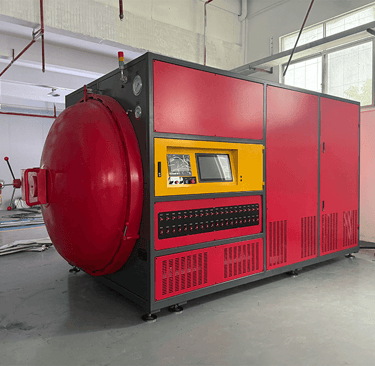

ZT-2240 Autoclave Technical Data

1. Overview of Pressure Testing for ZT-2240 Carbon Fiber

a. Composite material pressure vessels are mainly used for the hot pressing and curing of non-metallic composite material products. This equipment can process composite materials...

The material product is heated and pressurized to solidify and mold under vacuum.

b. The autoclave is a key piece of equipment in the molding process of polymer-based composite material components. The autoclave molding process involves placing the composite material...

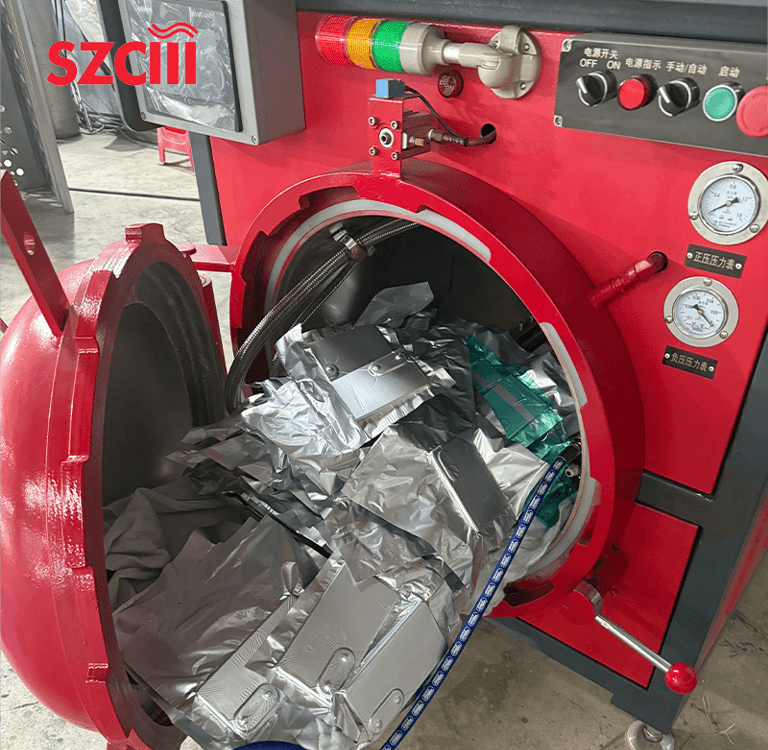

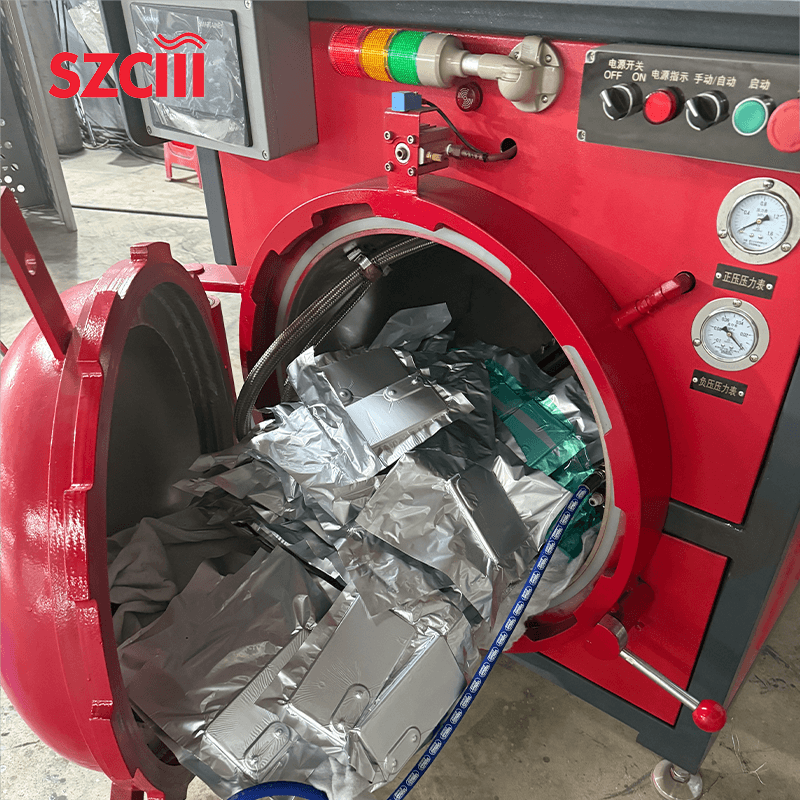

Material blanks, honeycomb sandwich structures, or adhesive-bonded structures are sealed in vacuum bags on a mold and placed in an autoclave under vacuum (or non-vacuum) conditions.

Under vacuum conditions, the material undergoes a process of heating, pressurizing, holding at medium or high temperature, and then cooling and depressurizing to form the desired shape.

Molding process methods for products in terms of shape and quality.

c. The curing of the composite matrix resin is related not only to the molecular structure of the resin, but also to other components (curing agent, crosslinking agent, etc.).

(This is related to accelerators, etc.) External conditions—temperature, pressure, and time—play a crucial role in curing; these are commonly referred to as the three factors.

These factors are the main process parameters, and all autoclave molding processes must be determined based on the molecular structure changes of the base resin.

The pressure vessel must be able to control the corresponding process parameters
